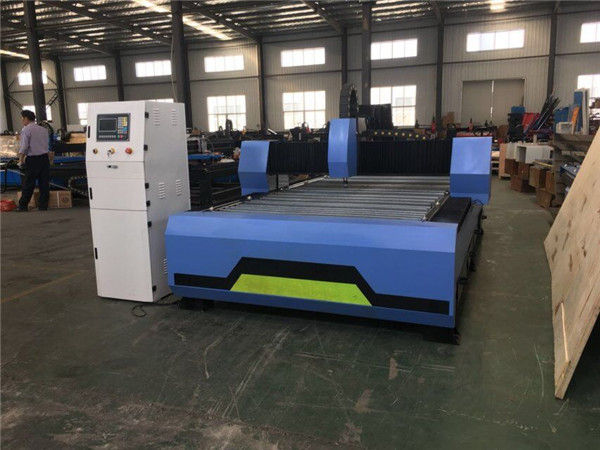

ce iso認證和新型金屬板等離子切割機
快速詳情


條件:新的
電壓:220V / 380V
額定功率:1000W
尺寸(長*寬*高):3880 * 2150 * 2000mm
重量:1500kg
認證:CE ISO
保修期:2年
提供售後服務:工程師可在海外維修機械
Product name: ACUT-1530等離子切割機
Application: cutting metal
Motor: stepper or servo
Working area: 1500*3000*200mm
Software: Artcam
Control system: Start control system
Color: Purple&white or customized
plasma power: 63A /100A/120A/200A
flame cutting head: optional
切削材料:金屬不銹鋼碳鋼鋁



產品描述


Apply to industry and materials
Processing shells of machinery and electronic products, advertising signs, crafts, iron garden, car manufacture, boatbuilding, electrical accessories, board cutting

Functional Characteristics

Fast cutting speed, high precision and low cost.
2. with firm and reasonable structure. The machine is easy to operate and durable for use.
3. The cutting incision is thin and tidily and can avoid the second processing.
4. High configurator CNC system, auto arc-striking and stable performance.
5. Together with other advertising equipment’s, they form an advertisement producing line which completely solve the problem of traditional manual mode.
6. It can cut metal plate of advertising 3D lighting letter and flute profile letter with high cutting precision. (USA power is optional).
7. It supports the standard G code router files that made by software’s such as ARTCUT, CAXA, ARTCAM and TYPE3. Converted by certain software, it can also read DXF file that out of AUTOCAD, The control system, adopting U flash disk to change the processing files

Performance Index


機器模型

ACUT-1325 Plasma

ACUT-1530

工作區域

1300×2500毫米

1500 *3000毫米

Processing thickness

0.5-50mm

Current Plasma

63A, 100A, 120A, 200A

切割精度

±0.5毫米

Orientation precision

0.05毫米

切割速度快

0-8m /分鐘

Travelling speed

0-15m/min

功率

8.5KW

輸入電壓

380V

Power frequency

50HZ

The mode of file transfer

USB(接口)

工作形式

untouched arc striking



Industrial 等離子切割機


Apply to industry and materials
it is used to cut iron plate, steel plate, aluminum plate, titanium plate, copper plate and other metal plate

Functional Characteristics

If the machine adopts American Hyperthermia power supply, START control system and auto torch-height adjuster. It can cut metal of 3-50mm thickness.

Packaging & Shipping


1. Standard plywood case, its compressive strength and bearing quality is better.

2. the board area is bit, the soil structure is good, it is better in leakproofness and waterproof.

3. when importing, the plywood case is with fumigation-free, the procedure is simple.

4. Delivery Detail: within 7-14 days after received your payment
